What's new in CMS IntelliCAD 14.1

dwg compatible what is new bim rvt true autocad alternative dwg 2020 Object ARX Revit 2025 .rvt import Ribbon dark theme BIM and Format Updates new VLISP command Esri image mapping Performance Boost Mapping & Geospatial Integration Performance & Security Enhancements Drafting & Block Management BIM Workflows UI & API Improvements

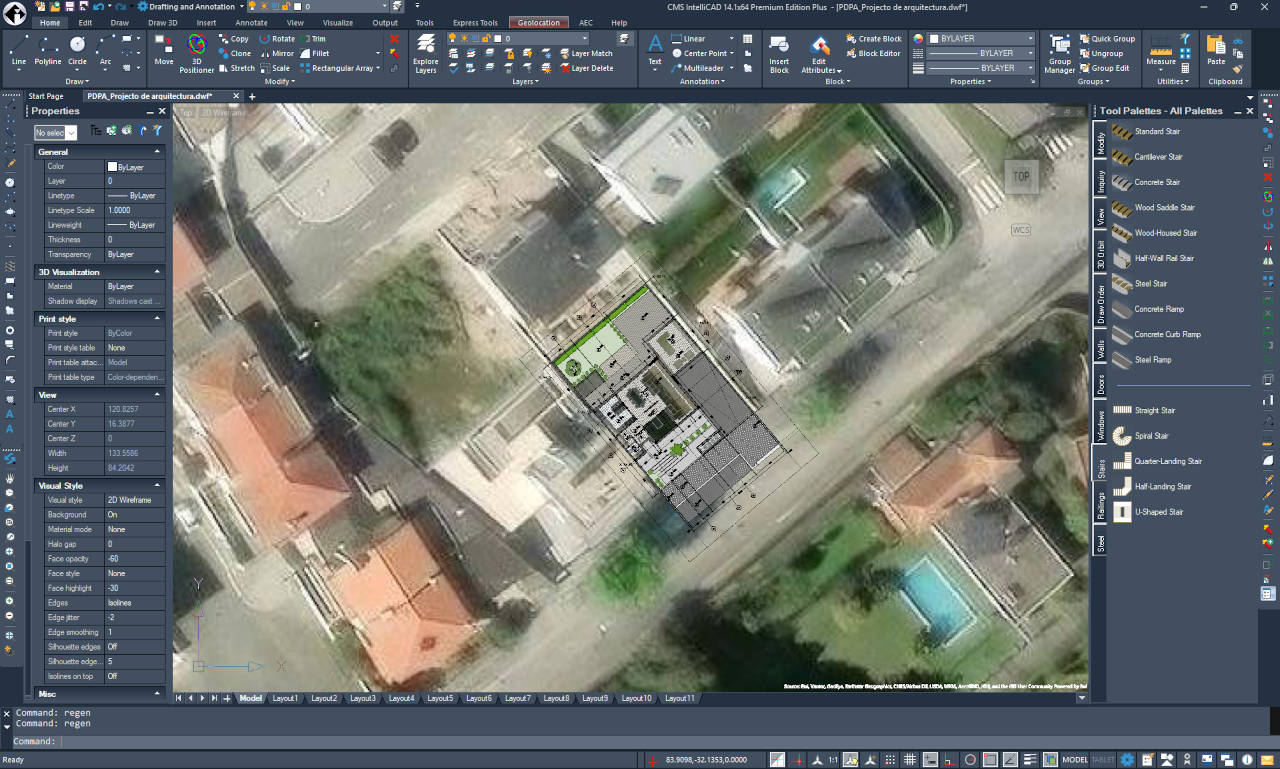

CMS IntelliCAD 14.1 User Interface

CMS IntelliCAD 14.1 introduces significant performance gains, expanded geospatial capabilities, and refined BIM workflows to streamline professional drafting.

1. Mapping & Geospatial Integration

  • Geospatial PDFs: Export drawings to PDF with live coordinate and measurement metadata, allowing reviewers to see real-time location data.
  • Azure Maps: In addition to Bing, users can now utilize Microsoft Azure Maps with the new GEOMICROSOFTSERVICE command.

2. Performance & Security Enhancements

  • Speed Boosts: Enjoy up to 63% faster line creation when snapping and 2x faster Copy commands (with VBA enabled). Performance for Undo and GEO map rendering has also been optimized.
  • Secure Signing: Digital signatures now leverage Cryptography Next Generation (CNG) technology, supporting self-signed certificates for easier security workflows.
  • Advanced Undo: The new MREDO (Multiple Redo) command allows users to roll back multiple changes and system variable updates simultaneously.

3. Drafting & Block Management

  • Block Testing: The BTESTBLOCK command allows users to test advanced blocks in a temporary window without altering the original definition.
  • Enhanced Tool Palettes: Now supports images, leaders, and external references with high-visibility previews.
  • Table & Layer Automation: Tables now support auto-filling with blocks and improved keyboard navigation. Layer filters can be exported to .lft files or copied directly to Excel for auditing.

4. BIM Workflows

  • BIM Openings: New anchor options provide precise control over how doors and windows orient and scale relative to walls.

5. UI & API Improvements

  • Dynamic UI: Icons now automatically adapt to Dark, Gray, or Light themes. Selection cycling is now accessible directly from the status bar.
  • LISP & .NET: Support for compiled FAS and VLX LISP formats for protected distribution, alongside new debugging tools in Visual Studio Code and expanded IcARX functions.

Note: This update also includes extensive "under the hood" fixes for external references, snapping, data extraction, and polyline editing to ensure maximum stability.

Free trial available at https://intellicadms.com

CMS IntelliCAD 14.1 licenses are available as Perpetual or Lease Standalone seats, USB dongle seats, Network floating seats or Renewable Subscriptions.
